Multipurpose Housing
Also available as OEM products

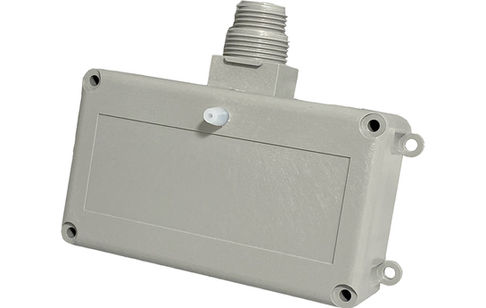

The AE Products Multipurpose Housing is a molded plastic enclosure for electrical or electronic equipment. The enclosure is intended for inside or outside use. A single size enclosure may include options such as a hinged lid, internal circuit board bosses, alternate color, lockable clasp, and/or a molded threaded male electrical conduit nipple. Alternately the male threaded nipple may be changed to a female threaded hole. The enclosure is intended to be used with fittings appropriate to the application in accordance with the NEC or connected directly to other enclosures by use of the molded nipple in accordance with the NEC. The enclosure is intended to be an End of Line electrical box and is not intended to form part of a safety grounding system.
Specification & Features
Enclosure models without lid seal
Type 1
Enclosure models with lid seal and 2 lid screws
Type 1, 3
Enclosure models with lid seal and with 4 lid screws
Type 1, 3, 4, 4X, 6
Operating temperature range
-40ºC to 85ºC (silicone seal)
-35ºC to 60ºC (nitrile seal)
Male Threaded Nipple
1/2” or 3/4” or Dual-Thread
Female Threaded Hole
PG11 or M16 (for cord grips)
Enclosure UL 94 Rating
5VA/V-0 (Grey), HB (colors)
Enclosure Listed
Listed to UL508, UL50, UL50E
Enclosure Options
Hinged Lid, Internal Circuit Board Bosses, Alternate Colors, Lockable Clasp, Molded Threaded Male Electrical Conduit Nipple, Male thread can be changed to female threads
Download the Specification Sheet
Request a Quote
Refine your selection using the
Model Number Configuration
below to request a personalized quote.

Model Number Configuration
Model Number Preview:
MPB-__




![Multipurpose Housing Line Drawings (Exterior [NB] with Hinge and Clasp)](https://static.wixstatic.com/media/6924cb_9895bb22f6d245deaf34ae353ae4fb4d~mv2.png/v1/fit/w_486,h_322,q_90,enc_avif,quality_auto/6924cb_9895bb22f6d245deaf34ae353ae4fb4d~mv2.png)
![Multipurpose Housing Line Drawings (Exterior [NL])](https://static.wixstatic.com/media/6924cb_647f4c88baa3475f80b9327a14cd823d~mv2.png/v1/fit/w_486,h_322,q_90,enc_avif,quality_auto/6924cb_647f4c88baa3475f80b9327a14cd823d~mv2.png)
![Multipurpose Housing Line Drawings (Exterior [NS])](https://static.wixstatic.com/media/6924cb_f89ea19f2eb94347919dd270c59092d1~mv2.png/v1/fit/w_486,h_322,q_90,enc_avif,quality_auto/6924cb_f89ea19f2eb94347919dd270c59092d1~mv2.png)
![Multipurpose Housing Line Drawings (Internal [NN])](https://static.wixstatic.com/media/6924cb_4c22eac31621458faf79618d352b8f07~mv2.png/v1/fit/w_486,h_322,q_90,enc_avif,quality_auto/6924cb_4c22eac31621458faf79618d352b8f07~mv2.png)
![Multipurpose Housing Line Drawings (Internal [NL])](https://static.wixstatic.com/media/6924cb_ead64ea7adb44478b3b8349e544e626d~mv2.png/v1/fit/w_486,h_322,q_90,enc_avif,quality_auto/6924cb_ead64ea7adb44478b3b8349e544e626d~mv2.png)
